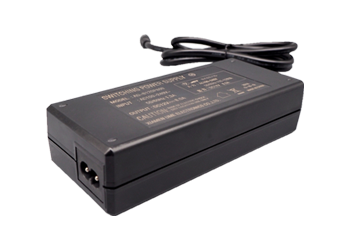

        UME-96W series-D04 Desktop Type ( PSE )

        UME-96W series-D04 Desktop Type ( PSE )

        產品介紹

        UME-D04 Desktop Type ( PSE)、96W Max 200VA Max

        ☆100-240VAC Universal Input

        ☆Regulated Output with Low Ripple Noise

        ☆Private Label Marking Available

        ☆Modified and Custom Design Available



        產品特點

        Model No.

        AC Input Rating

        DC Output Rating

        UME-D04

        90V~264V

        12V/8.0A

        Green Mode

        CEC, Energy Star Level VI, ErP Stage 2 & NRCan

        Voltage

        100-240 VAC

        Line Frequency

        50-60Hz  +/-10%

        Current

        8.0A Max.

        Load Regulation

        ± 5% (Typical)

        Ripple

        1~2% Vp-p Max. for Output Voltage@ Full Load 200(Vp-p)(mV)

        Transient Response

        0.5mS for 50% Load Change Typical

        Holdup Time

        10mS @ Full Load

        Protection

        Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

        DC Cord

        18AWG/16AWG

        Safety Approvals

        ForUK- CE / LPS

        ForUSA- UL / cUL / FCC / PSE / LPS

        ForChina-  CCC / LPS

        ForEurope- CE / LPS

        Electrical

        Dielectric Withstand

        3,000 VAC Primary-Secondary

        Leakage Current

        0.25mA @ 2 Pin

        Efficiency

        Energy Star Level VI, ErP Stage 2, GEMS & NRCan Certified

        EMI Conduction&Radiation

        Compliance to EN55022 Class B

        Harmonic Current

        Compliance to EN61000-3-2,3

        EMS Immunity

        Compliance to EN61000-4-2,3,4,5,6,8,11

        MTBF

        300,000 Calculated Hours at 25°C, by Telcordia SR-332

        Environmental

        Operaturing Temperature

        0 to +40°C

        Storage Temperature

        -40 to +80°C

        Relative Humidity

        Operating: 10 to 90% RH  Storage: 10 to 90% RH

        Mechanical

        Case Dimension

        145.1x 62.6 x 34.9 (mm)


        Weight

        主要用途

        power supply

        產品系列

        96W series
